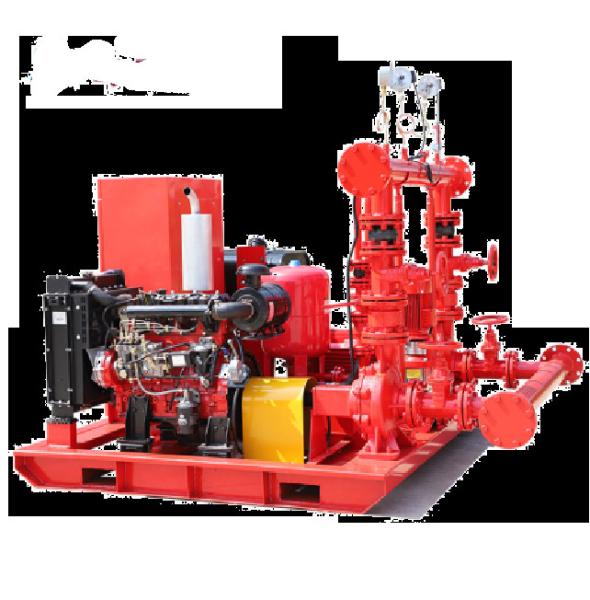

    Electric Centrifugal Diesel Fire Fighting Pump Big Flow High Pressure UL Listed

    Ask Lasest Price
    Brand Name : WINAN
    Model Number : XBC
    Certification : ISO
    Price : Negotiate
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 set per month
    Delivery Time : 25-45 days
    MOQ : 1 Set
    • Product Details
    • Company Profile

    Electric Centrifugal Diesel Fire Fighting Pump Big Flow High Pressure UL Listed

    UL Listed Electric Centrifugal Diesel Fire Fighting Pump Big Flow High Pressure


    1. Description
    Generally, the pipeline network's pressure is between the low-pressure P1 and the high-pressure P2. When the above pressure is lower than P1, the pressure maintaining pump will start automatically and not stop until the pressure rises gradually to P2. Due to the pipeline network's leakage, its pressure will drop to P1 gradually, and then the pressure maintaining pump will start automatically again.with such a repeated process, the pipeline network's pressure is maintained between P1 and P2 all the time. when the pipeline network's pressure can't be maintained between P1 and P2 (for instance, when the water consumption increases a lot) and drops to the minimum pressure P3, the electric pump will start automatically and the pressure will rise to PW and meet the need for fire water supply, if the mains supply is power-off or the electric pump fails, the pressure will continue to drop from P3 to the ultimate pressure P4.then the diesel pump set will start automatically,and the pressure will rise to PW and meet the need for fire water supply. the electric or diesel pump shall be stopped manually after human judgment (except automatic switching ).

    2. Some specifications for Clients Choosing

    Pump Model
    (Split Case Pump)
    Rated Capacity
    (GPM)
    Inlet x Outlet
    (INCH)
    Rated Net Pressure Range
    (PSI)
    Approx Speed
    (RPM)
    Max Working Pressure
    (PSI)
    SLOW80-3503005x3129-2212950290
    SLOW80-3504005x3127-2192950290
    SLOW100-4005006x4225-2882950350
    SLOW80-280(I)5005x386-1532950200
    SLOW100-3205006x4115-2022950230
    SLOW100-4007506x4221-2832950350
    SLOW100-3207506x4111-1972950230
    SLOW125-3807508x548-711480215
    SLOW125-48010008x564-841480200
    SLOW125-30010008x598-1442950200
    SLOW125-38010008x545-691480215
    SLOW125-48012508x561-791480200
    SLOW150-35012508x645-651480200
    SLOW125-30012508x594-1412950200
    SLOW150-57012508x6116-1451480290
    SLOW150-35015008x639-631480200
    SLOW125-30015008x584-1382950200
    SLOW150-57015008x6115-1421480290
    SLOW200-530150010x895-1401480215
    SLOW200-530200010x889-1331480215
    SLOW250-470200012x1044-771480210
    SLOW250-610200012x1092-1481480290
    SLOW250-610250012x1087-1441480290
