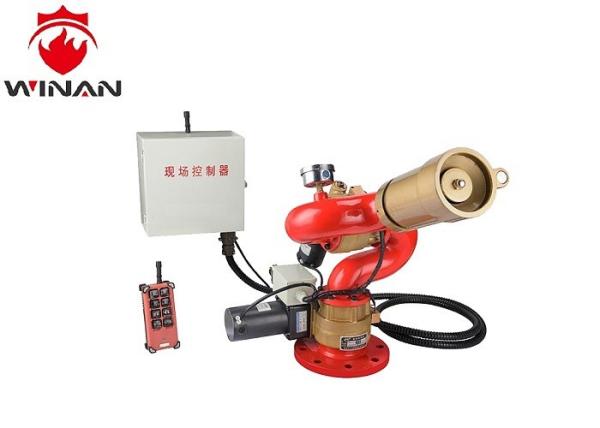

PSKD Series Electric Control Firefighting Water Cannon Monitor
Product Description
PSKD series fire gun is a kind of new-type multi-functional fire
resistance to high pressure, high strength material combination
extinguishing equipment can be equipped on the all kinds of fire
engines, fire boats, fire and fire pipeline fixed turret. The gun
nozzle uses a diversion type design principle, flow, concentration
range, multiple functions, and can be used as a DC can do spray
flow, according to the requirements in the (20 ~ 50L/S) within the
scope of regulation, convenient operation, and can be barrel rotary
pitching rotation, and can realize the positioning and locking etc.When water jet, it used for cooling fire and put out the fire. The
water monitor is suitable for equipped with heavy fire trucks, fire
ships, industrial and mining enterprises, warehouses, oil tank and
the fixed fire extinguishing equipment.
Technical parameters
| Model | Flow(L/S) | Range(m) | Rated working pressure(Mpa) | Vertical rotation Angle(°) | Horizontal rotation Angle(°) | Weight
(≤kg) | Link the flange |
|
| PSKD20 | 20 | 48 | 0.8 | -30〜+70
or
-70〜+70 | 0-360 | 25 | DN100 |
| PSKD30 | 30 | 55 | 30 |
| PSKD40 | 40 | 60 |
| PSKD50 | 50 | 65 | 45 | DN100 |
| PSKD60 | 60 | 70 | 1 |
| PSKD70 | 70 | 75 |
| PSKD80 | 80 | 85 |
| PSKD100 | 100 | 90 | 1.2
1.4 | 55 | DN150 |
| PSKD120 | 120 | 95 |
| PSKD150 | 150 | 100 | 105 | DN200 |
| PSKD180 | 180 | 105 |
| PSKD200 | 200 | 110 |
Features
1)Wireless remote control can be used to one control one, one
control four, one control eight, one control thirty-two and other
ways;
2)Has two kinds of injection function of flowering and straight
jet;
3)A variety of control modes (wireless control, wired control,
emergency manual control);
4)Convenient maintenance;
5)With self-locking function;
6)Water monitor head stability;
7)Low inlet pressure;
8)High flow rate,Small volume;
