Fire Water Monitor,Fire Fighting Monitor,Fire Fighting Equipments
Product Description

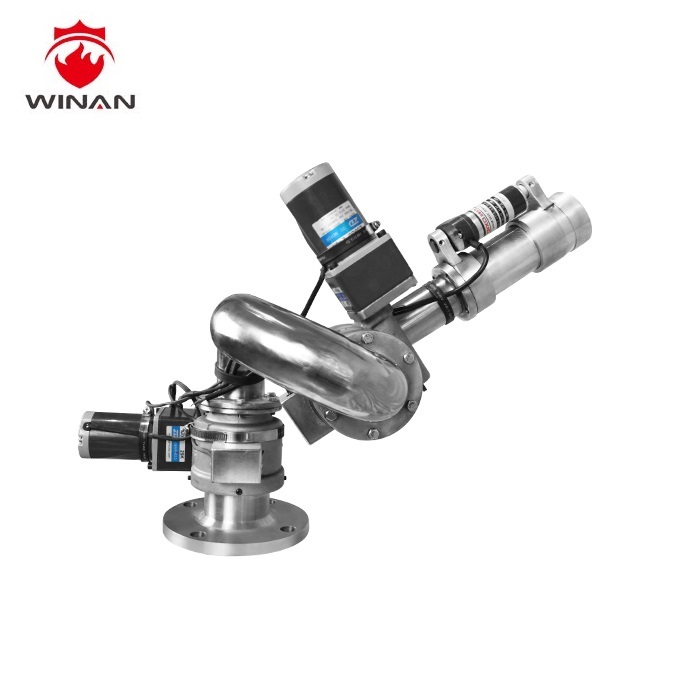

PSKD Series Electric Control Firefighting Water Monitor is DC drive of electric cable and wireless remote control two
control modes, fully realized the advantages of remote operating of
the fire scene, can well protect the safety of the fireman, the
fire monitor has the characteristics of novel structure, stable and
reliable performance, flexible operation, convenient maintenance,
low inlet pressure, high flow rate, long water jet range, light
weight, small volume, etc. When water jet, it used for cooling fire
and put out the fire. The water monitor is suitable for equipped
with heavy fire trucks, fire ships, industrial and mining
enterprises, warehouses, oil tank and the fixed fire extinguishing
equipment.
Technical parameters
| Model | Flow(L/S) | Range(m) | Rated working pressure(Mpa) | Vertical rotation Angle(°) | Horizontal rotation Angle(°) | Weight
(≤kg) | Link the flange |
|
| PSKD20 | 20 | 48 | 0.8 | -30〜+70
or
-70〜+70 | 0-360 | 25 | DN100 |
| PSKD30 | 30 | 55 | 30 |
| PSKD40 | 40 | 60 |
| PSKD50 | 50 | 65 | 45 | DN100 |
| PSKD60 | 60 | 70 | 1 |
| PSKD70 | 70 | 75 |
| PSKD80 | 80 | 85 |
| PSKD100 | 100 | 90 | 1.2
1.4 | 55 | DN150 |
| PSKD120 | 120 | 95 |
| PSKD150 | 150 | 100 | 105 | DN200 |
| PSKD180 | 180 | 105 |
| PSKD200 | 200 | 110 |
Features
1)Wireless remote control can be used to one control one, one
control four, one control eight, one control thirty-two and other
ways;
2)Has two kinds of injection function of flowering and straight
jet;
3)A variety of control modes (wireless control, wired control,
emergency manual control);
4)Convenient maintenance;
5)With self-locking function;
6)Water monitor head stability;
7)Low inlet pressure;
8)High flow rate,Small volume;
9)Low power consumption , light weight;
10)Wireless remote control distance ≥150m;
11)Material: stainless steel 304 or 316 optional.
Advantages:
1. Concentrated jet flow and long range.
2. Large working area and multi-function.
3. Can be equipped on all kinds of fire trucks, fire boats, high
platforms, fixed monitor towers, and fire pipelines.
