    Worm Actuated Fire Fighting Valves Wafer Connection With Worm Gear Operated

    Ask Lasest Price
    Brand Name : WINAN
    Model Number : DF
    Certification : CCC ISO
    Price : Negotiate
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 8000 Set/Sets per Month
    Delivery Time : Shipped in 15 days after payment
    • Product Details
    • Company Profile

    Worm Actuated Fire Fighting Valves Wafer Connection With Worm Gear Operated

    Worm Actuated Wafer Type Butterfly Valve With Worm Gear Operated Slim Disc Cast Iron


    Introduction:


    The disc of the wafer type butterfly valve is installed in the diameter direction of the pipe. In the cylindrical passage of the butterfly valve body, the disc-shaped disc rotates around the axis, and the rotation angle is between 0°-90°, which can play the role of flow regulation. When the disc rotates to 90°, the valve reaches the maximum. Opening degree.

    The clip-on butterfly valve is simple in structure, small in size and light in weight, and consists of only a few parts. Moreover, it can be quickly opened and closed by only rotating 90°, and the operation is simple, and the valve has good fluid control characteristics.


    Parameter:

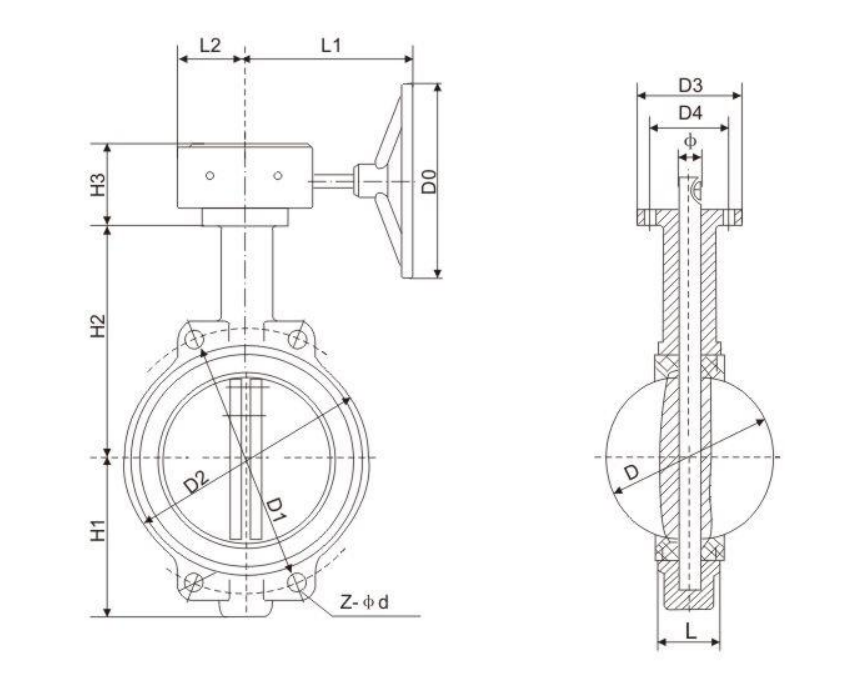

    主要尺寸表Main dimensions

    DNLL1DD1D2D3D44>H1H2H3Z- Ф d
    (mm)1.01.61.01.6
    504216052.912512592775712.670147604-Ф234-Ф23
    6544.716064.5145145110775712.676155604-Ф234-Ф23
    8045.216078.8160160121775712.692164608-Ф208-Ф20
    10052.1160104180180153927015.78106175604-Ф234-Ф23
    12554.4160123.3210210176927018.92119194604-Ф234-Ф 23
    15055.8160155.6240240207927018.92132206604-Ф254-Ф25
    20060.6210202.52952952591158922.10162237724-Ф254-Ф25
    25065.6210250.53503553161158928.45200282724-Ф284-Ф28
    30077210301.640041037014010831.6225311754-Ф284-Ф 28
    35076.5210333.346047040514010831.6263335754-Ф304-Ф30
    40086.5320389.651552547019715933.153094001264-Ф304-Ф30
    450105.6320440.5565585522197159383284201264-Ф304-Ф30
    500132320491.662065056619715941.153614801264-Ф304-Ф33
    600152340592.572577069327621650.654595601274-Ф304-Ф36
    70016338069584084080130025463.552062416724-Ф3024-Ф36
    800188380794.795095090730025463.559068016724-Ф3324-Ф39
    900203400864.71050105010163002547565672019328-Ф3328-Ф39
    10002164009651160117011233002548572080019328-Ф3628-Ф42
    1200276450115813801390145535029810584494128- Ф4028-Ф49

    Main Material:


    Product Name
    worm actuated butterfly valve
    Material
    Cast Iron, Ductile Iron, Stainless Steel, Carbon Steel
    Color
    Blue, red, purple or customer require
    Standard
    API609, AWWA C504, DIN3354 F4, GB/T12238, JIS 10K, BS5155
    Connection
    Wafer/Clamp
    Media
    water, gas, oil etc.
    Size
    2''-- 48''
    Certificate
    ISO9001-2008


    FAQ:


    1. Do you offer a free sample for your clients?

    Yes, we can offer you a free sample.


    2. What's the MOQ of your products?

    MOQ is ONE pcs/set.


    3. How long is the delivery time?

    Usually around 15 days after payment.


    4. Can you accept OEM?

    Yes, we do customized design for our clients.


    5. Are you a manufacturer with your own factory?

    Yes, we are the manufacturer for more than 20 years.


    6. What's your payment terms?

    We accept T/T, L/C, Western Union, Paypal, etc.
