    Foam Concrete Mixer Foam Fire Fighting Equipment For Fire Foam Generator

    Ask Lasest Price
    Brand Name : WINAN
    Model Number : PHY
    Certification : ISO CCC
    Price : Negotiate
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 Set/Sets per Month
    Delivery Time : Shipped in 10 days after payment
    • Product Details
    • Company Profile

    Foam Concrete Mixer Foam Fire Fighting Equipment For Fire Foam Generator

    Fire Rescue Equipment , Foam Concrete Mixer For Foam Generator
    Product Description

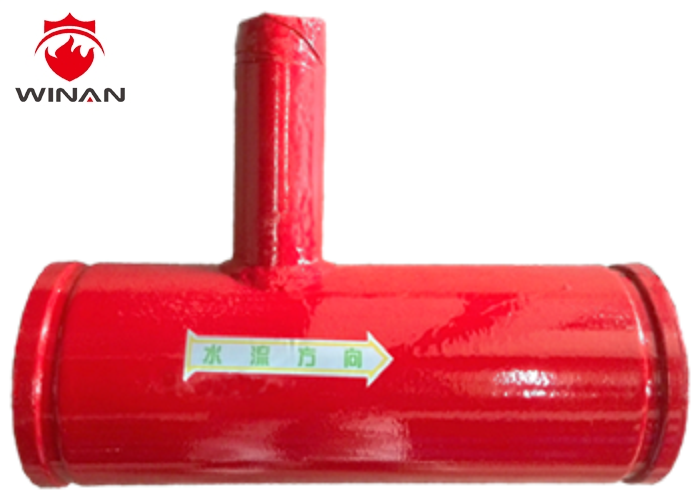

    Pressure type proportioner is the important unit for all kinds of foam proportionate system, especially equipped on bladder tanks. It makes water to mix with foam concentrate at a certain ratio (3% or 6%) to get foam solution. This the simplest proportioner with a main pipe and two branch pipes. One is the water inlet (to the tank) branch pipe and another one is the foam concentrate outlet (from the tank) branch pipe. There is a concentric reducer between the two branch pipes. When pressurized water flows through the main pipe, a small part of water flows into water inlet branch pipe by the obstruct of the concentric reducer. This part of water press bladder in the tank and foam concentrate come out from concentrate outlet branch pipe to mix with another big part of water and form foam solution.


    Technical parameters


    ModelPHY4PHY8PHY16PHY24PHY32PHY48PHY64PHY76PHY120PHY200
    Main Pipe
    Diameter (mm)
    506580100150150150150200250
    Branch Pipe Diameter (mm)20253250505065658080
    Flow Range (L/S)1~42~83~164~248~3212~4815~6417~7620~12024~200
    Biggest Flow (L/S)482432486476100180260
    Pressure Drop (MPa)≤0.05
    Intlet Pressure (MPa)0.6~1.2



    Company Information

    Our company now has a large area of industrial workshops of more than 10000 square meters. We possess all kinds of advanced producing equipments, sophisticated manufacturing process and modernized testing center. Our products contain foam system, sprinkler system, fire monitors, fire hydrant, water mist system and valves.Winan fire-fighting passed the ISO9001:2000 Quality Management System Certification in 2001 and we also passed the CCC Product Quality Certification of Ministry of Public Security fire products in 2004.

    Products manufactured by Winan fire-fighting were assessed as the “Chinese high-quality brand-name products" by Chinese Quality Management Juries. The company was assessed as the “AAA" honest enterprise by Ministry of Commerce Economic Academy and it is the member of Chinese Fire Protection Association.

    Products made by Winan fire-fighting had won a number of national patents after decades of innovation and we believe that we can do better in our industry!


    Certification



    FAQ

    1. Do your offer free sample for your clients?

    Yes, we offer free sample for many of the products


    2. Are you manufacturer with your own factory?

    Yes, we are the manufacturer for more than 20 years


    3. What's your payment terms?

    We accept T/T, L/C, Western Union, Paypal,etc.


    4. Do you have technical support?

    Yes, we have a professional engineering team.


    5. Do you have warranty?

    Yes, all products have one year warranty.


    6. Can you accept OEM?

    Yes, we do customized design for our clients.
