    Industrial Fire Monitors Water Foam Monitor Flow Range 450GPM To 800GPM

    Ask Lasest Price
    Brand Name : WINAN
    Model Number : PS
    Certification : CCC ISO
    Price : Negotiate
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 Pieces per month
    Delivery Time : Shipped in 15 days after payment
    • Product Details
    • Company Profile

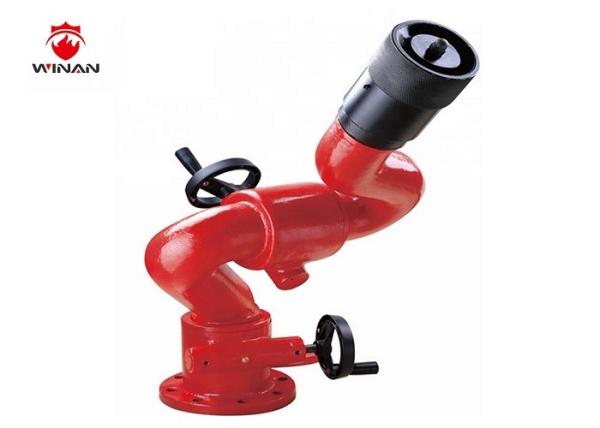

    Industrial Fire Monitors Water Foam Monitor Flow Range 450GPM To 800GPM

    Flow Range 450GPM to 800GPM Water Cannon for Fire Fighting , Fire Water Monitor


    Description


    Fire water monitor is a fire fighting device which help to spray water and suppress fire at a long distance. It’s widely used for oil industrial, storage tank farm, hangar, warehouse, sea port, garage and other areas. It’s also an ideal device for fire fighting vehicle.


    Technical Parameters


    Water Flow Rates20L/S,30L/S,40L/S,50L/S,60L/S,70L/S,80L/S
    Jetting RangeFrom 48 meters to 80 meters,it depends on the working pressure
    Working Pressure0.8 Mpa,0.9Mpa,1.0Mpa,1.2Mpa
    Connection typeFlange type
    Body MaterialStainless Steel 304,Cast iron,Ductile iron
    Sealing MaterialNBR
    Painting ColorRed,RAL3000
    Flange Size80mm,100mm
    Applicable MediumWater,Foam,foam mixture,such as AFFF3%,AFFF6%
    Updown Turning angle>70 degree
    Horizontal Turning Angle>180 degree
    Installation TypeFixed type
    Working TypeManual type
    Manufacture StandardGB50338-2003
    Model NumberPS

    ModelPS20PS30PS40PS50PS60PS70PS80
    Flow(L/S)20304050607080
    Working Pressure(Mpa)0.80.80.80.80.90.90.9
    Max Working Pressure(Mpa)11111.21.21.2
    Flange Connection(mm)DN80DN80DN80DN80DN100DN100DN100
    Water Jetting Range(m)≥ 48≥ 55≥ 60≥ 65≥ 70≥75≥80
    Horizontal Angle (Degree)0-3600-3600-3600-3600-3600-3600-360
    Max angle of elevation (Degree)70707070707070
    Max Angle Of Depression (Degree)-70-70-70-70-70-70-70

    Features


    1. Concentrated jet flow, big flow, long range, and multi-function.
    2. It can either be current spray or mist spray that controlled by a knob.
    3. Easy to operate and the barrel can either rotate or fasten.
    4. Flow can be adjusted from 20~50L/S as demands.
    5. The horizontal angle and pitch angle can be changed to fit different fire disasters.


    Company Information

    Our company now has a large area of industrial workshops of more than 10000 square meters. We possess all kinds of advanced producing equipments, sophisticated manufacturing process and modernized testing center. Our products contain foam system, sprinkler system, fire monitors, fire hydrant, water mist system and valves.Winan fire-fighting passed the ISO9001:2000 Quality Management System Certification in 2001 and we also passed the CCC Product Quality Certification of Ministry of Public Security fire products in 2004. Products manufactured by Winan fire-fighting were assessed as the “Chinese high-quality brand-name products" by Chinese Quality Management Juries. The company was assessed as the “AAA" honest enterprise by Ministry of Commerce Economic Academy and it is the member of Chinese Fire Protection Association.


    FAQ

    1. Do you offer free sample for your clients?
    Yes, we can offer you free sample.


    2. What's the MOQ of your products?
    MOQ is ONE pcs/set.


    3. Are you manufacturer with your own factory?
    Yes, we are the manufacturer for more than 20 years


    4. What's your payment terms?
    We accept T/T, L/C, Western Union, Paypal,etc.


    5. How long is the delivery time?
    Usually around 15 days after payment.


    6. Can you accept OEM?
    Yes, we do customized design for our clients.
