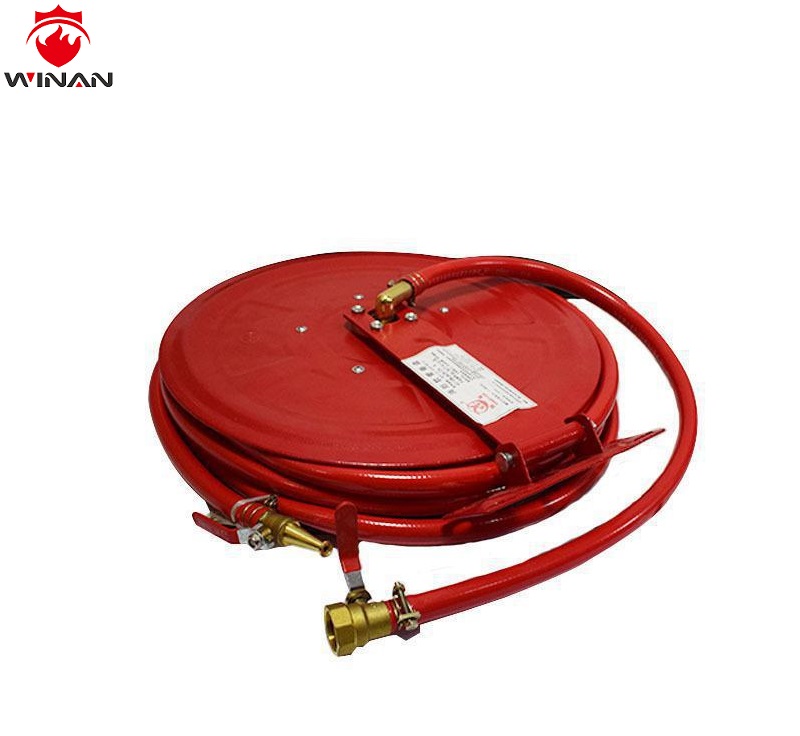

3/4" Swing Type PVC Fire Hose Reel With Fire Hose Water Nozzle
Fire Hose Reel Description:
Swing arm fire hose reel is suitable for use in shopping centers,
hotels, warehouse, school and public buildings. It enjoyd the
advantages of convenient operation, flexible use and possiblity for
untrained people to conduct fire extinguisher and self-rescue. It
is ideal for putting out initial indoor fires.
Fire hose reels are located to provide a reasonably accessible and
controlled supply of water to combat a potential fire risk. These
appliances are designed to deliver, as a minimum, 0.33L of water
per second. A control nozzle attached to the end of the hose
enables the operator to control the direction and flow of water to
the fire. All fire hose reels come with a unique ball valve
shut-off device, a solid brass hose reel nozzle and mounting
bracket.
Hose reel installation guidelines:
On receipt of consignment ensure that the carton and contents have
not sustained visible damage and that all parts are supplied.
Shortages or damage must be notified within 7 working days.
Store in a clean and dry place.
Prior to fitting ensure that the recess dimensions are correct and
that the structure where hose reel is fitted to, has sufficient
strength to support the hose reel.
Fire hose reels should be installed by a competent person in
accordance with the instructions and contained within this guidance
booklet and BS 5306 Part 1:1988 by a competent person. The
installer must be familiar with this Standard. We do not accept any
responsibility for improper installation resulting from the
installer's failure to meet the above standard or follow the
installation instructions contained within this guidance booklet.
Maximum working pressure 12 bar (static)
Pipeline work must be thoroughly flushed out before connection to
the hose reel, to prevent damage or blockage by debris.
Warning: Fire hose reels are designed for first aid fighting
purposes.
If they are to be used for purpose other than for which they are
designed, then our advice should be sought before installation.
| Diameter of disc | 450mm, 470mm, 500mm, 550mm, 585mm, 600mm |
| Length | 15M, 20M, 25M, 30M, 45M, 50M |
| Side plate | Steel with red powder coating, or stainless steel |
| Central hub | Frame and half cylinder |
| Water way | Brass original color or chrome plated |
| Fire hose | 19mm, 25mm, 33mm |
| Spray nozzle | Plastic, Brass made |
| Landing valve | 1", 1-1/2" reducing valve |
| Connection pipe | 1" x 1M |
SPECIFICATION:
RED PVC HOSE PIPE SIZE: 25MM(1'' INCH)
PIPE LENGTH:30M DISK ROUND:550MM,
BRASS NOZZLE (1'' inch), WORK PRESSURE:12 BAR,
TEST PRESSURE:18 BAR, DISTANCE BETWEEN DRUMS:350MM,
PACKING INFORMATION:
22.5*62.5*60.5CM, N.W:23KG; G.W:24.2, 1PCS/CTN
How to better find suitable fire hose cabinet from us?
Please tell us
1.Cabinet size
2.Cabinet material
3.Fire hose reel diameter
4.Fire hose reel length
Hose reel installation guidelines:
On receipt of consignment ensure that the carton and contents have
not sustained visible damage and that all parts are supplied.
Shortages or damage must be notified within 7 working days.
Store in a clean and dry place.
Prior to fitting ensure that the recess dimensions are correct and
that the structure where hose reel is fitted to, has sufficient
strength to support the hose reel.
Fire hose reels should be installed by a competent person in
accordance with the instructions and contained within this guidance
booklet and BS 5306 Part 1:1988 by a competent person. The
installer must be familiar with this Standard. We do not accept any
responsibility for improper installation resulting from the
installer's failure to meet the above standard or follow the
installation instructions contained within this guidance booklet.
Maximum working pressure 12 bar (static)
Pipeline work must be thoroughly flushed out before connection to
the hose reel, to prevent damage or blockage by debris.
Warning: Fire hose reels are designed for first aid fighting
purposes.
If they are to be used for purpose other than for which they are
designed, then our advice should be sought before installation.
Company Information
With a history of more than 20 years, Shenzhen Winan Industrial
Development Co. Ltd. is a professional manufacturer and exporter
who are focusing on designing, developing and manufacturing all
kinds of Fire fighting equipment. The company now has a large area
of industrial workshops of more than 10000 square meters, located
in Shenzhen, China, with convenient transportation access.
All of our products comply with international quality standards and
are greatly appreciated in a variety of different markets
throughout the world. Our well-equipped facilities and excellent
quality control throughout all stages of production enables us to
guarantee total customer satisfaction. As a result of our high
quality products and outstanding customer service, we have gained a
global sales network around the world.
Certificates:
All of our products comply with international quality standards and
are greatly appreciated in a variety of different markets
throughout the world. Our well-equipped facilities and excellent
quality control throughout all stages of production enables us to
guarantee total customer satisfaction. As a result of our high
quality products and outstanding customer service, we have gained a
global sales network around the world.
FAQ:
1. Do you offer free sample for your clients?
?????Yes, we can offer you free sample.
2. What's the MOQ of your products?
?????MOQ is ONE pcs/set.
3. Are you manufacturer with your own factory?
?????Yes, we are the manufacturer for more than 20 years
4. What's your?payment terms?
?????We accept T/T, L/C, Western Union, Paypal,etc.
5. How long is the?delivery time?
?????Usually around 15 days after payment.
6.?Can you accept OEM?
????Yes, we do customized design for our clients.
