Brass Quick Response Fire Sprinkler Heads , ESFR Water Sprinkler For Fire Protection , Fire Safety Sprinklers

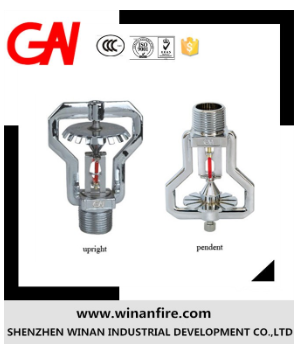

Fire Sprinkler Heads Description:

Main units of the ESFR series quick response sprinkler are glass bulb, seal and sprinkler. The glass bulb consists of an accurately controlled amount of special fluid hermetically sealed inside a precisely manufactured glass capsule. This glass bulb is specially constructed to provide fast thermal response. At normal temperatures, the glass bulb contains the fluid in both the liquid and vapor phases. The vapor phase can be seen as a small bubble. As heat is applied, the liquid expands, forcing the bubble smaller and smaller as the liquid pressure increases. Continued heating forces the liquid to push out against the bulb, causing the glass to shatter, opening the waterway and allowing the deflector to distribute the discharging water. In the action of quick response and water flow rate, the sprinkler can put out the high risk of fire at the early period.

Application:
Quick response sprinklers are used in fixed fire protection systems: Wet, Dry, Deluge or Preaction such as huge theatres, halls and convention center. Quick response sprinklers and standard response sprinklers should not be intermixed.

Technical Parameters:
1. Rated working pressure: 1.2MPa.
2. The diameter of the glass bulb: Φ3mm

Rated Temperature & Color Code:
