    AFFF AFFF/AR High Expansion Foam Generator Flow Rate 2.5 - 5.7 L / S

    Ask Lasest Price
    Brand Name : WINAN
    Model Number : PF
    Certification : CCC ISO
    Price : Negotiate
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 Set/Sets per Month
    Delivery Time : Shipped in 20 days after payment
    • Product Details
    • Company Profile

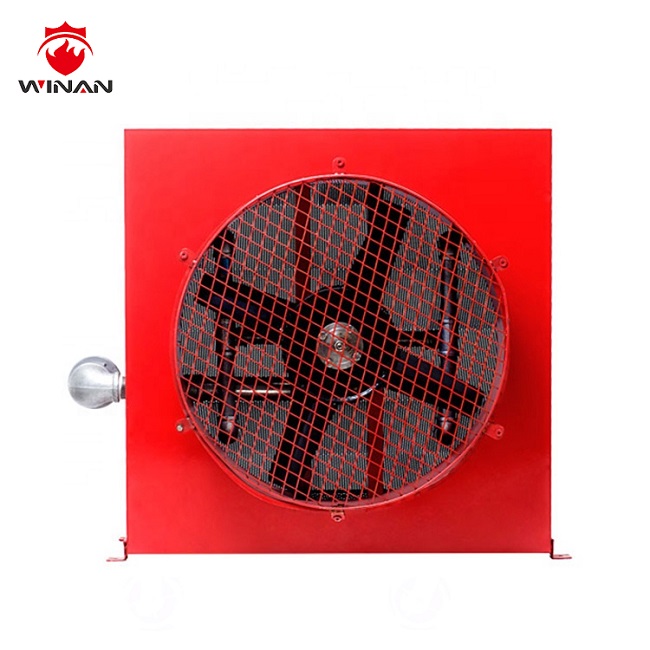

    AFFF AFFF/AR High Expansion Foam Generator Flow Rate 2.5 - 5.7 L / S

    Flow Rate 2.5 - 5.7 L / S High Expansion Fire Foam Generator , List of Fire Fighting Equipment


    Product Description

    High expansion foam agent and water are mixed at certain proportion and form foam solution. This solution flows to high expansion foam generator with a water powered motor. It is then discharged through a nozzle onto a fine mesh screen. A rotating fan will blow and transform the foam solution to mass of stable bubbles and form high expansion foam. These highly expanded foam will quickly flood protected area and smother fire effectively.

    The high expansion foam generator is one of the key equipment for high expansion foam extinguishing system. Its advantage is that it has big frothing volume and can be applied in different cases.Driving a hydroturbine with foam solution whose pressure is from 0.3~1.0Mpa and then the hydroturbine drives the fan. Foam solution was dispersed into droplets when it flow through a nozzle and sprayed to foam generate net. These droplets then form thin films and were blowed into amount of foams by the fan, constituting high expansion foam.


    Technical parameters


    ModelInlet Pressure
    (MPa)
    Foam Volume
    (m3/min)
    Flow RateExpansion
    Ratio
    PFY 40.3~1.0100~2002.5~5.7>300
    PFG 4

    Features and Benefits


    1. Water powered, small volume, light weight, high foam output device.

    2. No any harm to objects and electric equipment of protected areas.

    3. Can be flexibly installed according to environment, and also be movable to any site for directly fire suppression.


    Application


    It is usually applied in the high expansion foam extinguishing system.
