Application:
1. Applicable to the extinguishments of initial fires caused by
oil, flammable liquids, solid organices, gas and electric
equipment.
2. Ideal equipment for use in cars, offices, schools, hotels,
restaurant,kitchen and factory.
Features:
1. Simple structure, flexible operation, convenient application.
2. Fast extinguisher speed, high efficiency, continuous
orintermittent spraying.
3. Large Filling opening for extremely easy maintenance.
4. High durability of steel cylinder as it is property coated with
phosphate under treatment to resist corrosion and rust.
5.Brass plated valve with steel handles.
6. With operational temperature range.
How to use:
1. Pull the Pin at the top of the extinguisher. The pin releases a
locking mechanism and will allow you to discharge the extinguisher.
2. Aim at the base of the fire, not the flames. This is important -
in order to put out the fire, you must extinguish the fuel.
3. Squeeze the lever slowly. This will release the extinguishing
agent in the extinguisher. If the handle is seleased, the discharge
will stop.
4. Sweep from side to side. Using a sweeping motion, move the fire
extinguisher back and forth until the fire is completely out.
Operate the extinguisher from a safe distance, several feet away,
and then move towards the fire once it starts to diminish.
5. Be sure to read the instructions on your fire extinguisher.
Notice :
1.Keep away from children.
2.Do not incinerate.
3.Avoid inhaling the dry chemical agent.
4.Do not test . Any use will cause pressure loss.
SPECIFICATION
Material: ST13 steel
Test pressure: 27bar
Working pressure: 12bar
Working temperature: -20celsius degree to 55 celsius degree
Fire rating: 55A/233BC(85%ABC) 34A/233BC(50%ABC)
BC rate: 40%50%82% 90% 95%

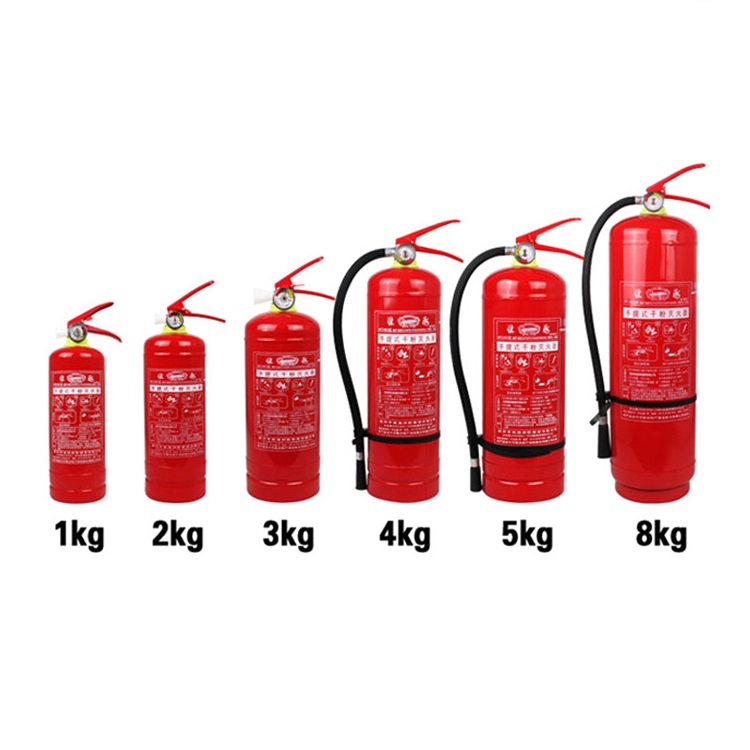

Specification: 1kg to 12kg for your choice
Packing size: 205*200*615(MM)
Label: screen print/adhensive sticker/hot stamp
Certifications: CE EN3 BSI TUV
