Carbon Steel 10000L Foam Fire Fighting System Vertical Foam Bladder Tank

Ask Lasest Price
Brand Name :	WINAN
Model Number :	PHYM
Certification :	ISO CCC
Price :	Negotiate
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	50 Set/Sets per Month
Delivery Time :	Shipped in 15 days after payment

Add to Cart

Product Details
Company Profile

Carbon Steel 10000L Foam Fire Fighting System Vertical Foam Bladder Tank

Carbon Steel 10000L Foam Fire Fighting System Vertical Foam Bladder Tank

INTRODUCTION
The Vertical Foam Bladder Tank is the main unit of the foam extinguishing system. The foam tank and the low/medium expansion foam generator construct the low/medium foam spraying system. It can also construct the high expansion total flooding extinguishing system with high expansion foam generator.

PRINCIPLE
The device consists of pressure tank, bladder, proportioner, pressure gauge, valves and pipeline. A pump is needed to supply pressurized water. When pressurized water flow though proportioner, a small part of water (3%-6%) flow into tank from branch pipe to press the bladder to swap out equal foam concentrate and then mix with another part of water (97%-93%) to form foam solution in proportioner and provide to foam generator.

PARAMETERS

Proportioner Model No.	PHY4	PHY8	PHY16	PHY24	PHY32	PHY40	PHY64	PHY72
Diameter (DN)	50	65	80	100	100	150	150	150
Mixing Ratio	3% or 6%
Rated Working Pressure (MPa)	1.2
Working Pressure Range (MPa)	0.3~1.2
Rated Flow (L/S)	4	8	16	24	32	40	64	72
Flow Rang (L/S)	1~4	2~8	3~16	4~24	8~32	12~40	15~64	17~72
Pressure Drop (MPa)	≤0.2

INSTALLATION
Device should be installed at places with shelter to avoid sun and rain. Ambient temperature should be within 40°C and leave enough space for operation. Device should be installed at concrete floor and fastened with anchor nuts.
Do the hydraulic test after installing. Open the tank vent valve first then fill water into bladder from concentrate draining pipe. Then close tank vent valve when bladder is full of water. Pressurize the system and keeping for 10 minutes when pressure gets test pressure, tank should have no leakage. Close water inlet valve and open water drainage valve and concentrate drainage valve to drain water away in tank and bladder. (We will do this test when products leave the factory)

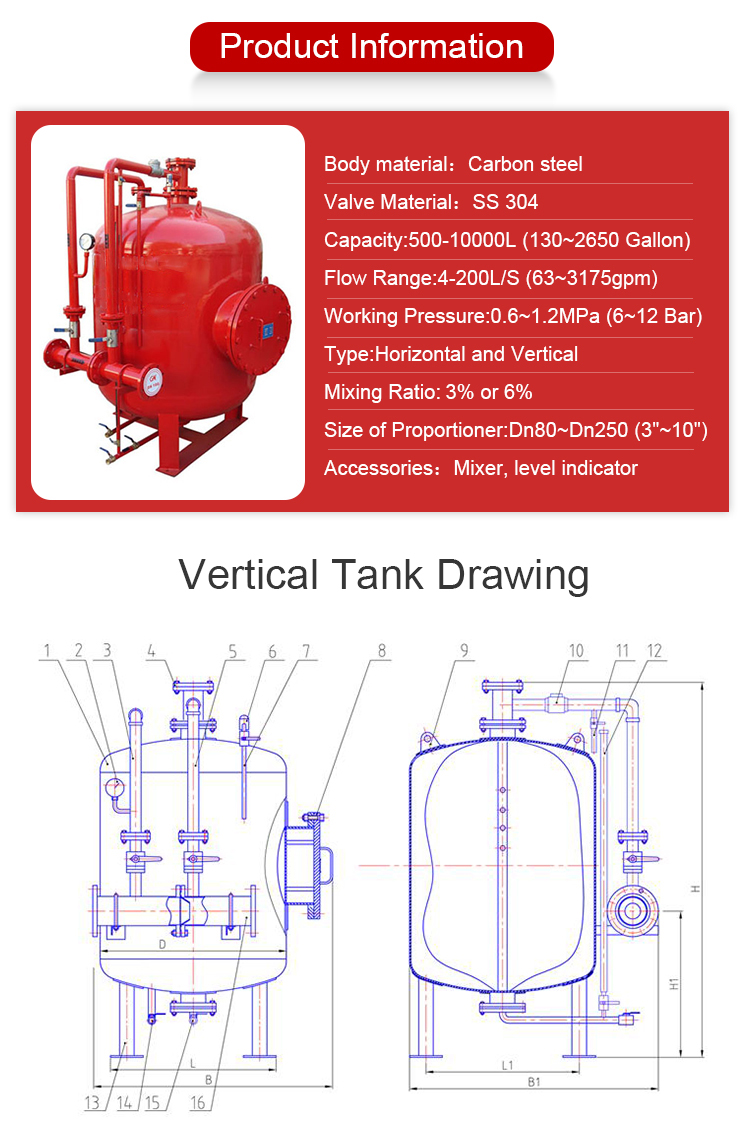

CAPACITY LITERS	D mm	L mm	L1 mm	B mm	B1 mm	H mm	H1 mm	WEIGHT (KG)
500	800	810	600	1000	1150	1700	1200	280
1000	1000	1010	800	1200	1350	2100	1200	350
1500	1200	1210	1000	1400	1550	2100	1200	450
2000	1400	1410	1200	1600	1750	2050	1200	550
3000	1400	1410	1200	1600	1750	2450	1200	800
4000	1600	1600	1400	1800	1950	2800	1200	1050
5000	1700	1680	1500	1900	2050	3000	1200	1200
6000	1800	1760	1600	2000	2150	3300	1200	1400
8000	1900	1820	1700	2100	2250	3800	1200	1600
9000	2000	1920	1800	2200	2350	3900	1200	1900
10000	2200	2120	2000	2400	2550	4300	1200	2200

Characteristics of foam tank

1. The foam tank has stable mixing ratio and high reliability, and can provide high-quality foam mixed liquid.

2. The foam tank has the smallest pressure drop, the sprayed foam extinguishing agent has large energy and strong penetrating ability. Can quickly put out the fire.

3. Save foam liquid and reduce fire extinguishing costs. Because the capsule of the foam tank separates the foam liquid from the water, the foam liquid is not used up at one time and can be used next time, and the mixing accuracy is stable and reliable.

4. It has a wide range of applications, no matter high, medium or low expansion foam fire extinguishing agent can be used. The foam ratio mixing device of the automatic foam fire extinguishing system can be used with foam nozzles or sprinklers.

Size and weight are just for reference, real products can be different.

FAQ

1. What is the minimum order quantity for your product?
The minimum order quantity is one set/set.Foam liquid is generally 1000 liters

2. Do you have your own factory manufacturer?
Yes, we have been a manufacturer for more than 20 years. Our main products are foam fire extinguishing equipment, bladder storage tank foam system, balanced pressure distribution system, etc. We can provide a one-stop service including fire protection products.

3. What are your payment terms?
We accept wire transfer, letter of credit, Western Union, Paypal, etc.

4. How long is the delivery time?
Usually about 15 days after payment, if you have custom or other requirements for delivery time, you need to communicate again.

5. Can OEM be accepted?
Yes, we provide customized designs for customers.
